Custom Cells | Robots Welding

Custom Robotic Welding Cells

Single or Multi-arm, including multiple material handling robots
Positioner options from FW3000 Ferris Wheel, SP3000 HS/TS on sweep, SP1000 turn table, single or dual Headstock / Tailstock, RTU robot transports and much more, Positioner loads up to 10,000#.
Custom designed system to solve complex and difficult manufacturing problems.
Weld fixtures designed and built around your process needs.
Powder coated fabrications
Allen Bradley CompactGuardlogix safety PLC, 12" HMI as standard, many options available as required.
Designed around Fanuc, OTC, or Motoman Yaskawa robots
Lincoln, Miller, OTC daihen weld packages with any major torch manufacturer's hardware.
Optional Imperial Systems smoke removal shroud and filtration
Optional RobotMaster cell environment and programming

Robot Packages

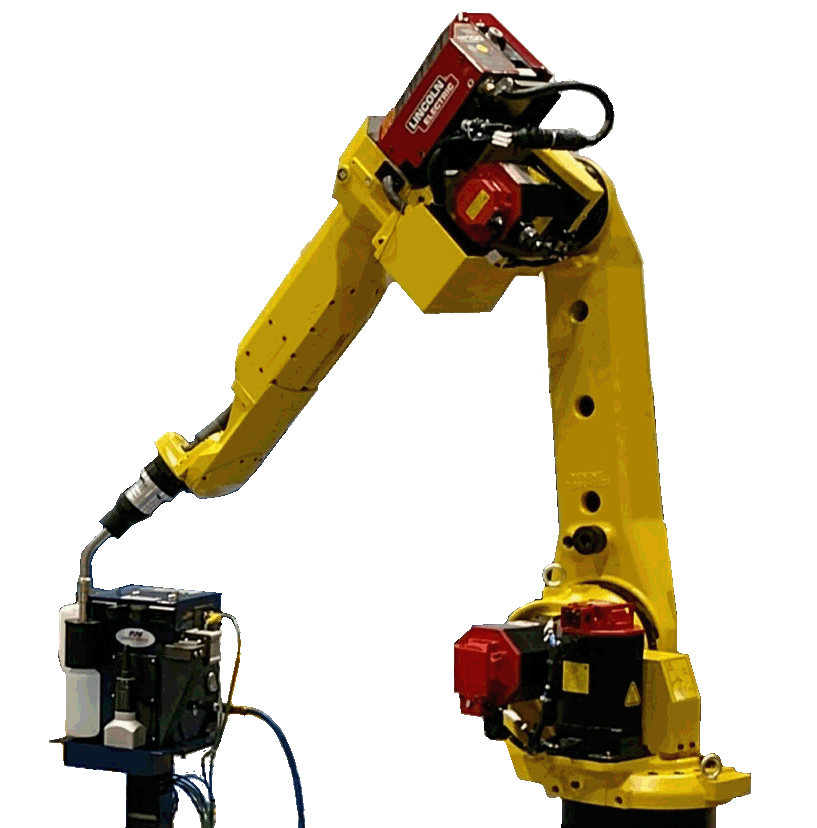

Fanuc Arcmate Robots

Fanuc ArcMate Robots - Arcmate 100iD, 120iD, M710iC/12L with R30iB+ controls

Industrial Robotix is a Level II Fanuc integrator. We utilize features like Advanved DCS and Safety over Ethernet I/P for seamless integration into our safety systems. Many other features such as Coordinated Motion, Torchmate, TAST Through Arc Seam Tracking, Touch Sensing

Digital interface with the welding power supply of your choice from Lincoln, OTC Daiheh, Miller, or Fronius.

Yaskawa Motoman Robots

Motoman Robots - AR1440, AR1730, AR2010, AR3120 with YRC1000 controls.

Industrial Robotix is a Yaskawa Motoman Solutions Provider. We utilize features like FSU and Safety over Ethernet I/P for seamless integration into our safety systems. Many other features such as Coordinated Motion, Through Arc Seam Tracking, Touch Sensing

Digital interface with the welding power supply of your choice from Lincoln, OTC Daiheh, Miller, or Fronius.

OTC Daihen Robots

OTC Daihen Robots - FD-B6, FD-B6L, FD-V8, FD-V8L with FD21 controls

The combined benefits of an OTC Daihen and OTC Daihen welding power supply are unmatched. OTC RMU safety functions, as well as advanced software like coordinated motion, through-arc seam tracking, touch sensing, and Ethernet I/P are available

Refurbished Robots

We occasionally offer late-model refurbished robots from Fanuc, Motoman and OTC Daihen. Contact us for inventory at the time of your project. Our inventory is very fluid, if there's a robot model we do not have we can most likely get it. We do not do as many refurbished robots as we did in the past, but we do offer them on occasion. Each robot is thoroughly tested, painted, greased, and put back into service. We utilize Renishaw T-90 triple ballbar system for metrology-level repeatability and backlash test reporting.

Welding and Torch Packages

Lincoln Electric

Lincoln R450 welding power supplies with or without integrated chiller system. STT process modules available. Lincoln AutoDrive feeder system. Optional bluetooth connection. Arclink over Ethernet comms to robot control. Powerconnect technology for 200-600v input. Equipped with welding modes including nickel, stainless, low and high alloy.

OTC Daihen

OTC Daihen Welbee P400, P400L and P500L as well as Welbee II P400 have you covered. Get TIG like beads using the P400 Welbee II DC pulse and DC Wave Pulse techologies. Materials from aluminum, stainless, titanium, zinc coatings, carbon and or high alloy steels. Low spatter, excellent quality welds. Digital or analog communication to most all robot controls. Analog comms available for older robots without digital welding comms. Water coooled available with integrated chiller packages.

Torches

American Weldquip products are American Made built right in Akron Ohio. Throug-arm or over-top style guns, air-cooled or water-cooled. We also offer torches from Tregaskiss, Binzel, Tweco, and Pac-Mig

Torch Cleaning System

American Weldquip Robo-Quip nozzle cleaning station features a clean, sinple design. Uncomplicated, it does not have on-board controls like other competitors models, all the while still offering the same advanced features such as Ethernet I/P comms. Multiple nozzle reamers are available to fit your torch. Other torch cleaning systems are available if requested.

Technology Packages

RobotMaster

The future of robotics is advancing rapidly. Offline programming is going to be a solid part of that future, and RobotMaster is leading the race when it comes to a 3d offline programming environment. Whether you're welding, plasma cutting, deburring, cutting, and now material handling, RobotMaster has a solution for you! Save hundreds of hours of pendant programming, follow your CAD paths, make changes and edits quickly and efficiently. Industrial Robotix is a solutions provider for RobotMaster - we offer sales, support, training, programming, and after-sales support.

Olis Connect

Remote control of your production environment makes it easy for offsite expertise to tackle problems causing downtime. Your automation experts can simply log in through Olis Co, see the issue from multiple angles, control the robot to perform corrective actions, and visually confirm the fix has worked remotely. Root cause analysis has never been easier—or faster!

Air Filtration and Smoke Removal

Airport, Shadow, and CMAXX

Not much has changed in the design of the welding hood, at least until now. The Air-Port eliminates the weaknesses of standard hoods. It also brings its own unique set of patent pending benefits seen nowhere else. For standard and robotic welding, the Air-Port offers the first true new innovations in welding hood design. Other welding hoods stand on four or more legs that bend or break. You can settle for poorly made or makeshift products. You can order hoods, which can have a ten week lead time and will still require you to cut and modify them onsite. Many take hours, several people, and even a forklift to install. Your new option is the Air-Port. The Air-Port arrives ready to use. The ductwork is pre-installed into its two compact, low-footprint legs. Optional built-in spark traps give you another industry first in welding hood safety. Adjustable dampers built into the hood make it easy to balance the air flow for your needs. With the concave hood shape, the Air-Port captures more smoke and fumes. The Air-Port arrives on a pallet and can be installed by two people in less than an hour. Ductwork built into the cross beams hooks to your ductwork, with no holes to cut. The hoods can be lined up in a modular arrangement for a clean, efficient shop. The two-legged design leaves plenty of room to move around, so the Air-Port will not block people from getting where they need to be.

Contact us for pricing options for Airport, Shadow and CMAXX line for your robotic welding systems. All of Industrial Robotix standard systems are fully compatible with all Imperial Systems robotic fume extraction systems.

Robotic Systems Integrator

Welcome to our Robotic Welding Site | Please also visit our main site at www.industrialrobotix.com | Celebrating 20 years in business 2004-2024
